LUOYANG SANWU CABLE CO., LTD.
Professionele fabrikant van kabels en geleiders

|
| Plaats van herkomst: | Luoyang, China |
| Merknaam: | SANWU |
| Certificering: | CCC,ISO |
| Modelnummer: | Lucht Luchtkabel |
| Min. bestelaantal: | 1000 meter |
|---|---|
| Prijs: | Negote |
| Verpakking Details: | houten trommels |
| Levertijd: | 7-15 dagen |
| Betalingscondities: | T/T, L/C |
| Levering vermogen: | 200T/day |
| Naam: | Lucht Luchtkabel | Leider Type: | Solid/7 bundels |
|---|---|---|---|
| Kernen: | 1 kern 2 kern 3 kern | Geïsoleerd: | Geïsoleerd pvc |
| Leider Size: | 6AWG | Geïsoleerde dikte: | 45mls |
| Markeren: | 3 kern antenne bundelde kabel,PVC-geïsoleerde luchtkabel,PVC-geïsoleerde abc-kabel 3 kern |
||

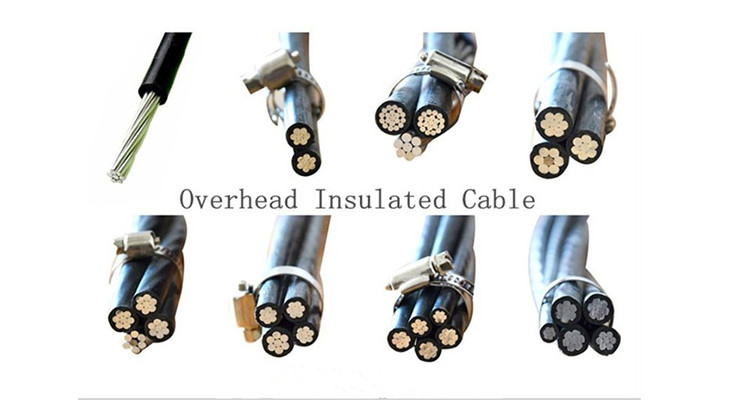

1 kern 2 kern 3 kern luchtkabel XLPE/PVC geïsoleerd
Normen
GB/T12527,1179,IEC60502,NFC 33-209,BS 7870,ANSI/ICEA S-76-474 AS/NZS 3560.1 enz.
Productiebereik
Nominale spanning U0/U(Um) (kV): 0,6/1(1.2) Aantal kernen: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Nominale doorsnede ((mm2): 10~240
Bouw
Fasegeleiders:Ronde of gecompacteerde 1350-H19-aluminium- of kopergeleider,AAAC,ACSR
Neutrale of boodschappergeleider: ronde of samengeperste aluminiumlegering 6201 of AAC,,ACSR
Straatverlichtingsgeleider: ronde of gecompacteerde aluminiumgeleider
Isolatie: LDPE,HDPE,XLPE,PVC (UV-bestand)
| Code Naam |
Fasegeleider | Neutrale boodschapper | Gewicht per 1000 ft ((lbs) |
Beoordeling ((Amps) | ||||||
| Grootte AWG |
Strand | Isolatie dikte (mls) |
Grootte AWG |
* Strand | Breuk sterkte (lbs) |
XLP | POLY | XLP | POLY | |
| AAC | ||||||||||
| Pekingese | 6 | solide | 45 | 6 | 7/w | 563 | 63.5 | 61.7 | 70 | 70 |
| Collie | 6 | 7/w | 45 | 6 | 7/w | 563 | 66.8 | 63.1 | 70 | 70 |
| Teckelhond | 4 | solide | 45 | 4 | 7/w | 881 | 95.5 | 93.4 | 90 | 90 |
| Spaanse paarden | 4 | 7/w | 45 | 4 | 7/w | 881 | 100.5 | 95.4 | 90 | 90 |
| Dobermans | 2 | 7/w | 45 | 2 | 7/w | 1,350 | 152.7 | 145.7 | 120 | 120 |
| Malemute | 1/0 | 19/w | 60 | 1/0 | 7/w | 1,990 | 242.6 | 234.2 | 160 | 160 |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Setter | 6 | solide | 45 | 6 | Geliefd van Jehovah, 1/15 | 1.190 | 75.0 | 73.2 | 70 | 70 |
| Herder | 6 | 7/w | 45 | 6 | Geliefd van Jehovah, 1/15 | 1.190 | 78.3 | 74.6 | 70 | 70 |
| Eskimo's | 4 | solide | 45 | 4 | Geliefd van Jehovah, 1/15 | 1.860 | 113.7 | 111.6 | 90 | 90 |
| Terriër | 4 | 7/w | 45 | 4 | Geliefd van Jehovah, 1/15 | 1.860 | 118.7 | 113.6 | 90 | 90 |
| Chow. | 2 | 7/w | 45 | 2 | Geliefd van Jehovah, 1/15 | 2.850 | 181.7 | 174.7 | 120 | 120 |
| Stier | 1/0 | 19/w | 60 | 1/0 | Geliefd van Jehovah, 1/15 | 4.380 | 288.7 | 280.3 | 160 | 160 |
| 6201 LEERING NEUTRALE-BOodschapper | ||||||||||
| Chihuahua's | 6 | solide | 45 | 6 | 7/w | 1,110 | 67.6 | 65.8 | 70 | 70 |
| Vizsla | 6 | 7/w | 45 | 6 | 7/w | 1,110 | 70.9 | 67.2 | 70 | 70 |
| Harrier | 4 | solide | 45 | 4 | 7/w | 1,760 | 102.0 | 99.9 | 90 | 90 |
| Whippet | 4 | 7/w | 45 | 4 | 7/w | 1,760 | 107.0 | 101.9 | 90 | 90 |
| Schnauzer | 2 | 7/w | 45 | 2 | 7/w | 2,800 | 163.3 | 156.2 | 120 | 120 |
| Heeler | 1/0 | 19/w | 60 | 1/0 | 7/w | 4,460 | 259.2 | 250.8 | 160 | 160 |
2. Triplex Service Drop-Aluminium geleider
Bouw:
Concentrische strengen of gecomprimeerde 1350-H19-geleider, polyethyleen- of gekoppelde polyethyleenisolatie, concentrische strengen AAC, ACSR of 6201 legering neutrale boodschapper.
Normen: ASTM B-230, B-231, B-232 en B-339 & ICEA S-76-474
| Code Naam |
Fasegeleider | Neutrale boodschapper | Gewicht per 1000 ft ((lbs) |
Ampaciteit (ampere) | |||||||
| Grootte AWG |
Stranding | Isolatie dikte (mls) |
Grootte AWG |
Stranding | Breuk sterkte (lbs) |
XLP | POLY | XLP | POLY | ||
| 6201 LEERING NEUTRALE-BOodschapper | |||||||||||
| Minex | 6 | solide | 45 | 6 | 7 | 1,110 | 106.6 | 102.9 | 85 | 70 | |
| Hippa | 6 | 7/w | 45 | 6 | 7 | 1,110 | 113.2 | 105.7 | 85 | 70 | |
| Garnelen | 4 | solide | 45 | 4 | 7 | 1,760 | 158.4 | 154.1 | 115 | 90 | |
| Barnacle's | 4 | 7/w | 45 | 4 | 7 | 1,760 | 168.3 | 158.2 | 115 | 90 | |
| Garnelen | 2 | 7/w | 45 | 2 | 7 | 2,800 | 253.7 | 239.7 | 150 | 120 | |
| Gammarous | 1/0 | 7/w | 60 | 1/0 | 7 | 4,460 | 411.7 | 386.0 | 205 | 160 | |
| Leda. | 1/0 | 19/w | 60 | 1/0 | 7 | 4,460 | 402.7 | 386.0 | 205 | 160 | |
| Dungenese | 2/0 | 7/w | 60 | 2/0 | 7 | 5,390 | 506.8 | 476.3 | 235 | 185 | |
| Cyclops | 2/0 | 19/w | 60 | 2/0 | 7 | 5,390 | 495.3 | 476.3 | 235 | 185 | |
| Vlokken | 3/0 | 19/w | 60 | 3/0 | 7 | 6,790 | 611.4 | 589.1 | 275 | 215 | |
| Laat maar. | 4/0 | 19/w | 60 | 4/0 | 7 | 8,560 | 757.1 | 730.5 | 315 | 245 | |
| 6201 ALLOY REDUCEED NEUTRAL-MESSENGER | |||||||||||
| Artemia | 4 | solide | 45 | 6 | 7 | 1,110 | 141.4 | 137.1 | 115 | 90 | |
| Kreeft | 4 | 7/w | 45 | 6 | 7 | 1,110 | 151.3 | 141.2 | 115 | 90 | |
| Zonnebrandstof | 2 | 7/w | 45 | 4 | 7 | 1,760 | 226.6 | 212.6 | 150 | 120 | |
| Zandkrab | 1/0 | 7/w | 60 | 2 | 7 | 2,800 | 368.8 | 343.1 | 205 | 160 | |
| Echinus | 1/0 | 19/w | 60 | 2 | 7 | 2,800 | 358.8 | 343.1 | 205 | 160 | |
| Kreeft | 2/0 | 7/w | 60 | 1 | 7 | 3,530 | 452.6 | 422.5 | 235 | 185 | |
| Sifo | 2/0 | 19/w | 60 | 1 | 7 | 3,530 | 441.0 | 422.5 | 235 | 185 | |
| Vlees | 3/0 | 19/w | 60 | 1/0 | 7 | 4,460 | 543.4 | 521.1 | 275 | 215 | |
| Arca | 4/0 | 19/w | 60 | 2/0 | 7 | 5,390 | 671.2 | 644.6 | 315 | 245 | |
| Code Naam |
Fasegeleiders | Naakt Neutraal | Gewicht per 1000 ft (lbs) |
Ampaciteit (ampere) | |||||||
| Grootte AWG of MCM |
Stranding | Isolatie dikte (mls) |
Grootte (AWG) |
* Stranding | Geclassificeerd sterkte (lbs) |
XLP | Poly | XLP | Poly | ||
| AAC NEUTRAL-MESSENGER | |||||||||||
| Haiotis | 6 | solide | 45 | 6 | 7 | 563 | 102.5 | 98.8 | 85 | 70 | |
| Verlies van de huid | 6 | 7/w | 45 | 6 | 7 | 563 | 109.1 | 101.6 | 85 | 70 | |
| Fusus | 4 | solide | 45 | 4 | 7 | 881 | 151.9 | 147.6 | 115 | 90 | |
| Oester | 4 | 7/w | 45 | 4 | 7 | 881 | 161.8 | 151.7 | 115 | 90 | |
| Vlees | 2 | 7/w | 45 | 2 | 7 | 1,350 | 243.2 | 229.2 | 150 | 120 | |
| Murex | 1/0 | 7/w | 60 | 1/0 | 7 | 1,990 | 395.1 | 369.4 | 205 | 160 | |
| Purpura | 1/0 | 19/w | 60 | 1/0 | 7 | 1,990 | 386.1 | 369.4 | 205 | 160 | |
| Nassa | 2/0 | 7/w | 60 | 2/0 | 7 | 2,510 | 485.8 | 455.3 | 235 | 185 | |
| Melita | 3/0 | 19/w | 60 | 3/0 | 19 | 3,310 | 585.2 | 562.9 | 275 | 215 | |
| Portunus | 4/0 | 19/w | 60 | 4/0 | 19 | 4,020 | 723.9 | 697.3 | 315 | 245 | |
| - Nee, niet echt. | 336.4 | 19/w | 80 | 336.4 | 19 | 6,146 | 1160.4 | 1118.0 | 420 | 325 | |
| Met ACSR MESSENGER in volle grootte | |||||||||||
| Deeltjes | 6 | solide | 45 | 6 | Geliefd van Jehovah, 1/15 | 1,190 | 114 | 113 | 85 | 70 | |
| Voluta | 6 | 7/w | 45 | 6 | Geliefd van Jehovah, 1/15 | 1,190 | 120 | 113 | 85 | 70 | |
| Wat is er? | 4 | solide | 45 | 4 | Geliefd van Jehovah, 1/15 | 1,860 | 169 | 165 | 115 | 90 | |
| Deeltjes | 4 | 7/w | 45 | 4 | Geliefd van Jehovah, 1/15 | 1,860 | 176 | 172 | 115 | 90 | |
| Schelpdieren | 2 | 7/w | 45 | 2 | Geliefd van Jehovah, 1/15 | 2,850 | 267 | 261 | 150 | 120 | |
| Neritina | 1/0 | 7/w | 60 | 1/0 | Geliefd van Jehovah, 1/15 | 4,380 | 530 | 419 | 205 | 160 | |
| Cenia | 1/0 | 19/w | 60 | 1/0 | Geliefd van Jehovah, 1/15 | 4,380 | 426 | 416 | 205 | 160 | |
| Runcina | 2/0 | 7/w | 60 | 2/0 | Geliefd van Jehovah, 1/15 | 5,310 | 530 | 519 | 235 | 185 | |
| Triton | 2/0 | 19/w | 60 | 2/0 | Geliefd van Jehovah, 1/15 | 5,310 | 526 | 514 | 235 | 185 | |
| Kerststeen | 3/0 | 7/w | 60 | 3/0 | Geliefd van Jehovah, 1/15 | 6,620 | 656 | 643 | 250 | 200 | |
| Mursia | 3/0 | 19/w | 60 | 3/0 | Geliefd van Jehovah, 1/15 | 6,620 | 650 | 638 | 250 | 200 | |
| Razor | 4/0 | 7/w | 60 | 4/0 | Geliefd van Jehovah, 1/15 | 8,350 | 814 | 799 | 315 | 245 | |
| Zuzara. | 4/0 | 19/w | 60 | 4/0 | Geliefd van Jehovah, 1/15 | 8,350 | 805 | 792 | 315 | 245 | |
| Limpet | 336.4 | 19/w | 80 | 336.4 | Verbeteren van je leven, 1/15 | 8,680 | 1209 | 1167 | 420 | 325 | |
| Code Naam |
Fasegeleiders | Naakt Neutraal | Gewicht per 1000 ft (lbs) |
Ampaciteit (ampere) | |||||||
| Grootte AWG of MCM | Stranding | Isolatie dikte (mls) |
Grootte (AWG) |
Stranding | Geclassificeerd sterkte (lbs) |
XLP | Poly | XLP | Poly | ||
| Met ACSR REDUCED SIZE MESSENGER | |||||||||||
| Schelpdieren | 4 | solide | 45 | 6 | Geliefd van Jehovah, 1/15 | 1,190 | 148 | 144 | 115 | 90 | |
| Strombus | 4 | 7/w | 45 | 6 | Geliefd van Jehovah, 1/15 | 1,190 | 158 | 148 | 115 | 90 | |
| Koekjes | 2 | 7/ w | 45 | 4 | Geliefd van Jehovah, 1/15 | 1,860 | 233 | 227 | 150 | 120 | |
| Janthina | 1/0 | 7/ w | 60 | 2 | Geliefd van Jehovah, 1/15 | 2,850 | 376 | 365 | 205 | 160 | |
| Ranella. | 1/0 | 19/ w | 60 | 2 | Geliefd van Jehovah, 1/15 | 2,850 | 372 | 362 | 205 | 160 | |
| Kavolinia | 2/0 | 7/ w | 60 | 1 | Geliefd van Jehovah, 1/15 | 3,550 | 462 | 451 | 235 | 185 | |
| Clio | 2/0 | 19/ w | 60 | 1 | Geliefd van Jehovah, 1/15 | 3,550 | 458 | 446 | 235 | 185 | |
| Zanddollar | 3/0 | 7/ w | 60 | 1/0 | Geliefd van Jehovah, 1/15 | 4,380 | 570 | 557 | 275 | 215 | |
| Aega | 3/0 | 19/ w | 60 | 1/0 | Geliefd van Jehovah, 1/15 | 4,380 | 565 | 552 | 275 | 215 | |
| Schelpdieren | 4/0 | 7/ w | 60 | 2/0 | Geliefd van Jehovah, 1/15 | 5,310 | 706 | 691 | 315 | 245 | |
| Deeltjes | 4/0 | 19/ w | 60 | 2/0 | Geliefd van Jehovah, 1/15 | 5,310 | 699 | 684 | 315 | 245 | |
| Koeien | 336.4 | 19/ w | 80 | 4/0 | Geliefd van Jehovah, 1/15 | 8,350 | 1135 | 1093 | 420 | 325 | |
3. Quadruplex Service Drop-Aluminium geleider
Bouw:
De geleiders zijn geconcentreerd, gecomprimeerd 1350-H19 aluminium, geïsoleerd met ofwel polyethyleen of XLP gekruist polyethyleen.of ACSREen geleider is vervaardigd met een geextrudeerde rand voor fase-identificatie.
Normen: ASTM B-230, B-231, B-232, B-339 en ICEA S-76 -474
| Code Naam |
Fasegeleider | Neutrale boodschapper | Gewicht per 1000 ft ((lbs) |
Beoordeling ((Amps) | ||||||
| Grootte AWG |
Strand | Isolatie dikte (mls) |
Grootte AWG |
Strand | Breuk sterkte (lbs) |
XLP | POLY | XLP | POLY | |
| AAC NEUTRAL-MESSENGER | ||||||||||
| Clydesdale | 4 | solide | 45 | 4 | 7 | 881 | 208 | 201.8 | 100 | 80 |
| Pinto | 4 | 7/w | 45 | 4 | 7 | 881 | 223 | 207.9 | 100 | 80 |
| Mustang | 2 | 7/w | 45 | 2 | 7 | 1,350 | 333 | 312.6 | 135 | 105 |
| Criollo | 1/0 | 19/w | 60 | 1/0 | 7 | 1,990 | 529 | 504.5 | 180 | 140 |
| Percheron | 2/0 | 19/w | 60 | 2/0 | 7 | 2,510 | 649 | 620.5 | 205 | 160 |
| Hannoverse | 3/0 | 19/w | 60 | 3/0 | 19 | 3,310 | 799 | 765.6 | 235 | 185 |
| Oostenrijk | 4/0 | 19/w | 60 | 4/0 | 19 | 4,020 | 986 | 946.7 | 275 | 210 |
| Lippizaner | 336.4 | 19/w | 80 | 336.4 | 19 | 6,146 | 1,546 | 1,519.2 | 370 | 280 |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Groenten en fruit | 6 | solide | 45 | 6 | Geliefd van Jehovah, 1/15 | 1,190 | 152 | 147.4 | 75 | 60 |
| Chola | 6 | 7/w | 45 | 6 | Geliefd van Jehovah, 1/15 | 1,190 | 162 | 151.7 | 75 | 60 |
| Morgan. | 4 | solide | 45 | 4 | Geliefd van Jehovah, 1/15 | 1,860 | 226 | 220 | 100 | 80 |
| Hackney | 4 | 7/w | 45 | 4 | Geliefd van Jehovah, 1/15 | 1,860 | 241 | 226.1 | 100 | 80 |
| Palomino | 2 | 7/w | 45 | 2 | Geliefd van Jehovah, 1/15 | 2,850 | 362 | 342.6 | 135 | 105 |
| Costena. | 1/0 | 19/w | 60 | 1/0 | Geliefd van Jehovah, 1/15 | 4,380 | 575 | 550.6 | 180 | 140 |
| Grullus | 2/0 | 19/w | 60 | 2/0 | Geliefd van Jehovah, 1/15 | 5,310 | 707 | 678.7 | 205 | 160 |
| Suffolk | 3/0 | 19/w | 60 | 3/0 | Geliefd van Jehovah, 1/15 | 6,620 | 872 | 838.9 | 235 | 185 |
| Appaloosa | 4/0 | 19/w | 60 | 4/0 | Geliefd van Jehovah, 1/15 | 8,350 | 1079 | 1039.2 | 275 | 210 |
| Bronco | 336.4 | 19/w | 80 | 336.4 | Verbeteren van je leven, 1/15 | 8,580 | 1613 | 1568.2 | 370 | 280 |
| Gelding | 336.4 | 19/w | 80 | 4/0 | Geliefd van Jehovah, 1/15 | 8,350 | 1548 | 1494.3 | 370 | 280 |
| Code Naam |
Fasegeleider | Neutrale boodschapper | Gewicht per 1000 ft ((lbs) |
Beoordeling ((Amps) | ||||||
| Grootte AWG |
Strand | Isolatie dikte (mls) |
Grootte AWG |
Strand | Breuk sterkte (lbs) |
XLP | POLY | XLP | POLY | |
| 6201 LEERING NEUTRALE-BOodschapper | ||||||||||
| De baai | 6 | solide | 45 | 6 | 7 | 1,110 | 145 | 140.0 | 75 | 60 |
| Franse coach | 6 | 7/w | 45 | 6 | 7 | 1,110 | 155 | 144.3 | 75 | 60 |
| Duitse coach | 4 | solide | 45 | 4 | 7 | 1,760 | 214 | 208.3 | 100 | 80 |
| Arabisch | 4 | 7/w | 45 | 4 | 7 | 1,760 | 229 | 214.4 | 100 | 80 |
| Belgisch | 2 | 7/w | 45 | 2 | 7 | 2,800 | 344 | 323.1 | 135 | 105 |
| Shetland | 1/0 | 19/w | 60 | 1/0 | 7 | 4,460 | 546 | 521.1 | 180 | 140 |
| Volbloed | 2/0 | 19/w | 60 | 2/0 | 7 | 5,390 | 670 | 641.5 | 205 | 160 |
| Trotter | 3/0 | 19/w | 60 | 3/0 | 7 | 6,790 | 825 | 791.8 | 235 | 185 |
| Wandelen | 4/0 | 19/w | 60 | 4/0 | 7 | 8,560 | 1019 | 979.7 | 275 | |
4Beschikbare monsters:
6Fabrieksmachines voor het maken van kabels:
7Verpakking en levering:
