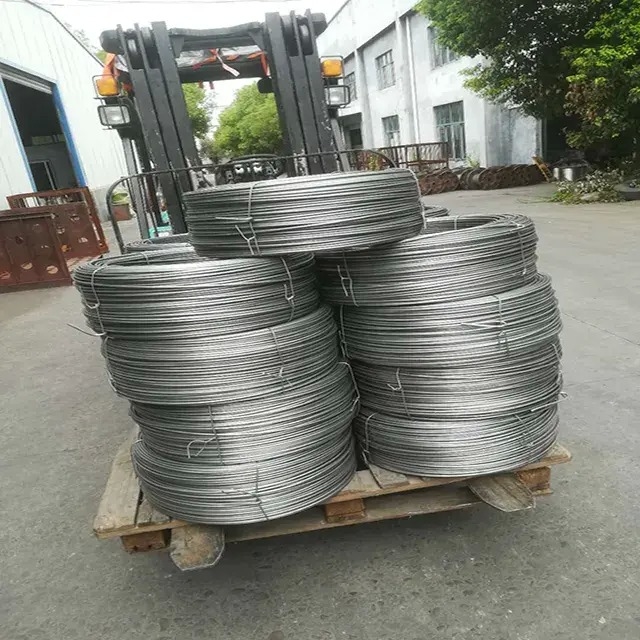

Name: EC Grade 9.5mm 1050 1060 1070 1100 Aluminum Wire Rod Manufacture for Electrical Purposes
Brand: Luoyang Sanwu Cable Co., Ltd.,
SKU: Aluminiumwalsdraad
Price: 1.99 USD
Availability: InStock

Thuis Producten Aluminiumwalsdraad

EC Grade 9.5mm 1050 1060 1070 1100 Aluminum Wire Rod Manufacture for Electrical Purposes

Productdetails:

Plaats van herkomst:	LUOYANG, CHINA
Merknaam:	Luoyang Sanwu
Certificering:	IS09001, IS014001,OHSAS18001
Modelnummer:	Aluminiumwalsdraad

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	20 tons
Prijs:	Onderhandelbaar
Verpakking Details:	De uitvoer standaard houten pallet, spoel, of volgens het verzoek van klanten
Levertijd:	7-15-werkdagen
Betalingscondities:	T/t, l/c
Levering vermogen:	9000 ton per maand

Contact

Gedetailleerde productomschrijving

Naam:	Aluminiumwalsdraad	Toepassing:	Kabel- en draadoplossingen
Capaciteit:	300tons per dag	Diameter:	8.0mm.9.5mm, 12mm
Gebruik:	AAC AAAC ACSR	Verwerkingsservice:	Buigen, lassen, ponsen, snijden
Markeren:	EC grade aluminum wire rod , 1050 aluminum wire for electrical , 9.5mm 1060 aluminum wire rod

EC Grade 9.5mm 1050 1060 1070 1100 Aluminum Wire Rod Manufacture for Electrical Purposes

Engineered for maximum efficiency in high-power applications, our ultra-conductive aluminium wire rods represent the pinnacle of electrical performance. Utilizing specialized purification processes and optimized thermo-mechanical treatment, we achieve exceptional conductivity ratings of 63-64% IACS - among the highest available in commercial aluminium conductors. These rods undergo rigorous quality control including ultrasonic testing and eddy current inspection to ensure perfect internal structure and surface quality for demanding power transmission applications.

Quick Details

Specifications : ASTM B211, AMS 4120, AMS 4339, AMS-QQ-A-225/6, ASTM B221, AMS 4152, AMS 4164, AMS 4165, AMS-QQ-A-200/3

Standard : ASTM, ASME

Surface: Bright, Polish & Black

Aluminium Round Bar: Temper:O, H12, H14, H16, H18, H22, H24, H26, H32, H112

Length :1M-6M,12M & Required Length

Diameter : 6.00 mm to 600.0mm

Grade : 1060,2014,2023,2a12,2024,5154, 5056, 5083, 5086, 5182 5005, 6061,6063,6082,7075,7a04

Product Description

Basic Info.

Model NO.

AY16-5-102

Surface Treatment

Oxidized

Alloy

Alloy, Non-alloy

Al(Min)

90-99.999%

Yield(≥MPa)

389, 400

Length

as Customers Require

Type

Aluminum Rod

Transport Package

as Your Need

Specification

IEC, ASTM, DIN, BS VDE, GOST, SAS, ISO, CCC, CQC

Trademark

Luoyang Sanwu

Origin

Henan, China

HS Code

76051100

Production Capacity

9000 Ton/Tons Per Month

TABLE 1-Textile Shield for Power Cable for Aluminum Rod

Purity	Chemical Composition%
	AL Minimum	Foreign Content,Maximum
	AL Minimum	Si	Fe	Cu	V+Cr+Mn+Ti	Other
Al99.60E	99.6	0.08	0.20	0.005	0.01	0.3

Type	Tensile Strength,N/mm²	Fracture Toughness%,Min	Electrical Resistance Ωmm²/m 20,Max
A	60-80	25	0.02755
A2	80-110	12	0.02785
A4	95-115	10	0.02801
A6	110-130	8	0.02801
A8	120-150	6	0.02801

TABLE 2- Tensile Property Limits for 1350mm Aluminum Rod

Temper	Tensile Strength
	Ks j	M pa
1350-O	8.5-14.0	59-97
1350-H12 and-H22	12.0-17.0	83-117
1350-H14 and-H24	15.0-20.0	103-138
1350-H16 and-H26	17.0-22.0	117-152

TABLE 3- Electrical Resistivity Limits for Aluninium wire

Temper	Resistivity	Equivalent Volume Conductivity,%
	Max.Ω.mm2/m	IACS Min.
1350-O	0.027899	61.8
1350-H12 and-H22	0.028035	61.5
1350-H14 and-H24	0.028080	61.4
1350-H16 and-H26	0.028126	61.3

EC Grade 9.5mm 1050 1060 1070 1100 Aluminum Wire Rod Manufacture for Electrical Purposes 0

Advantages:

Maximum Conductivity: 63-64% IACS rating reduces energy loss in critical applications
Superior Homogeneity: Continuous electromagnetic stirring ensures uniform crystalline structure
Enhanced Purity: 99.8%+ aluminium content with controlled trace elements
Premium Surface Quality: Laser inspection and polishing for defect-free surfaces
Performance Certification: Third-party verified to exceed IEC 62004 requirements

Applications:

Extra-high voltage transmission lines (400kV+)
Critical power infrastructure projects
Nuclear power plant safety systems
Data center backup power systems
Renewable energy integration projects

Packing & Shipping

1.Standard seaworthy export packaging. Wooden pallets with plastics protection for the coil and sheet.
2.The packaging can be eye to sky or eye to wall based on the customer's requirement.
3.26 MT can be located into 20FCL, the sea freight rate is much cheaper than 40FCL.
4.Delivery Time: 15-25 days after receiving 30% Prepayments

EC Grade 9.5mm 1050 1060 1070 1100 Aluminum Wire Rod Manufacture for Electrical Purposes 1

Our Company

Luoyang Sanwu Cable Co., Ltd., with registered capital of 106 million RMB, is a high-tech development company for scientific research, industry production and trading , offering a diverse selection of quality wires and cables to industrial customers in 33 countries worldwide. The leading products are ACSR, overhead conductor, AAAC, AAC, power cable, BLXY, home-used wire and so on.

FAQ

Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C
