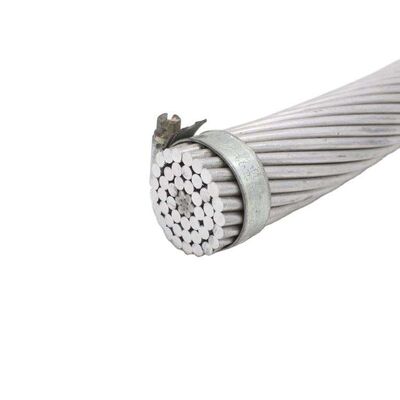

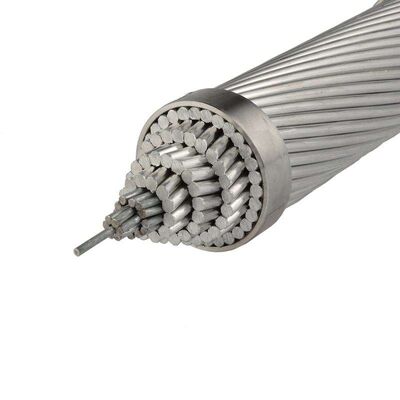

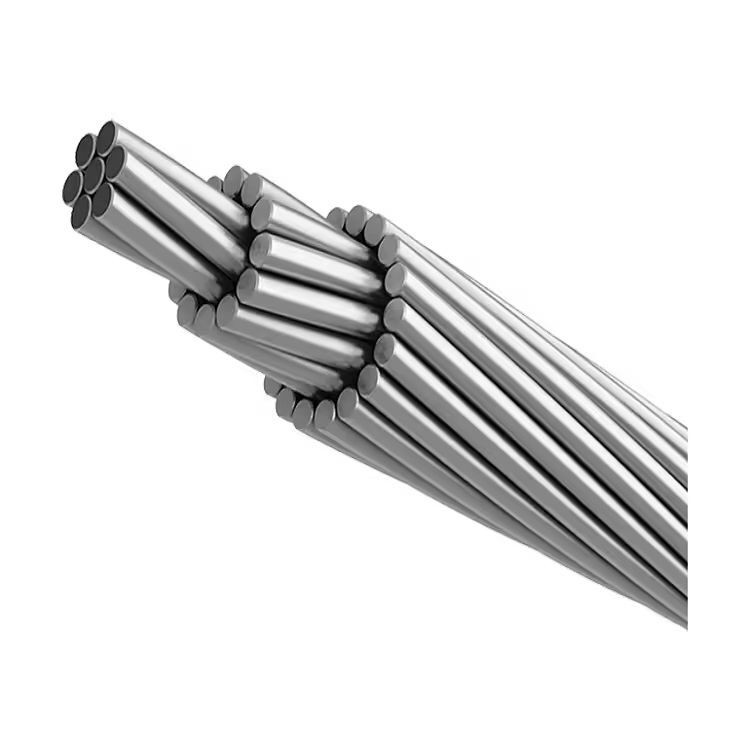

Aluminum Conductor Aluminum-Clad-Steel Reinforced Low Voltage Overhead ACSR/AW/AS Wire 1-1400mm2

Aluminum Conductor Aluminum-Clad-Steel Reinforced Low Voltage Overhead ACSR/AW/AS Wire 1-1400mm2

Specafication:

Standard:

ACSR Bare conductor meets or exceeds the following specifications:

• IEC 61089 Round wire concentric lay overhead electrical stranded conductors

• AS 3607 Conductors - Bare overhead - Aluminium and aluminium alloy-Steel reinforced

• ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced

• BS EN 50182 Conductors for overhead lines — Round wire concentric lay stranded conductors

• GB 1179 Round wire concentric lay overhead electrical stranded conductors

Note:We also can produce based on other international standards, such as IEC,ASTM etc.

Features:

1. Extensive Size Range – Cross sections from 1mm² to 1400mm² allow precise matching to current ratings, span lengths, and mechanical load requirements.

2. Aluminum‑Clad Steel Core – The steel reinforcement is completely sheathed in aluminum, preventing rust propagation even if the outer strands are damaged.

3. Low Voltage Optimized – Engineered specifically for overhead systems operating at or below 1kV AC, with minimal corona effect and simple hardware compatibility.

4. High Strength‑to‑Weight Ratio – Enables longer spans between poles than all‑aluminum conductors while maintaining sag limits.

5. Standardized Construction – Complies with international dimensional and electrical specifications, ensuring trouble‑free jointing and termination.

Applications:

1. Secondary Distribution Networks – Feeder lines from pole‑mounted transformers to consumer connection points in residential areas.
2. Rural Electrification Backbones – Cost‑effective overhead routes across farmland, where large cross sections (up to 1400mm²) handle community loads.
3. Industrial Park Loops – Low voltage ring mains supplying factories, warehouses, and workshops with high mechanical durability.
4. Temporary Event Power Grids – Quickly deployable bare overhead conductors for outdoor festivals or construction sites.
5. Replacement of Aged Copper Lines – Direct substitution for existing low voltage copper overhead wires to increase capacity and reduce weight.

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Our Workshop:

Customers Visit:

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

Q:Have you ever supplied cables to our country ?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
